Project Structure

Structure

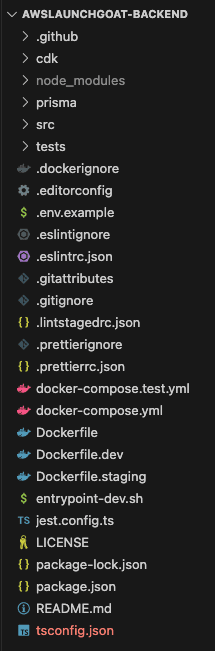

This is our Node.js TypeScript version of backend with AWS CDK integrated. Let's dive into each folder.

Create Permission Set

.github

Create Permission Set

  • This folder contains the GitHub workflow and CI/CD configuration files.

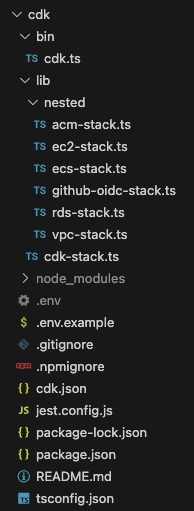

cdk

Create Permission Set

  • Structure for an AWS CDK application. Here's a breakdown of the key components shown:
bin: Main entry point for the CDK application where stacks are defined and instantiated.

lib: Core logic of CDK application, further organized into nested directories.

  nested: Includes various files defining specific AWS resource stacks:

    - acm-stack.ts: Related to AWS Certificate Manager.

    - ec2-stack.ts: Defines Amazon EC2 configurations for database access.

    - ecs-stack.ts: Contains definitions for Amazon ECS.

    - github-oidc-stack.ts: Configures GitHub OIDC for authentication.

    - rds-stack.ts: Used for Amazon RDS configurations.

    - vpc-stack.ts: Contains the configurations for Amazon VPC.

  - cdk-stack.ts: General CDK stack configurations.

prisma

Create Permission Set

  • This folder is dedicated to Prisma, an ORM (Object-Relational Mapping) tool used for interacting with the database in a type-safe manner.
schema.prisma:
- Defines our database schema. It describes the models in our application and their relationships.

seed.ts:
- Used to populate the database with initial data during development or testing.

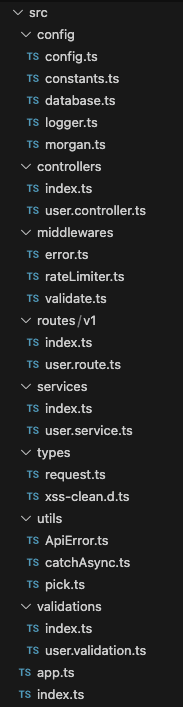

src

Create Permission Set

  • Structure of a Node.js project using TypeScript. Here’s a brief explanation of each component:
src: Main directory where the source code of the application is stored.

  config: Contains config files, such as DB configurations, or other environmental settings.

  controllers: Houses the logic for handling requests and responses.

  middlewares: Includes functions that can run between receiving the request and sending the response.

  routes: Defines the endpoints of your API and connects them to the corresponding controllers.

  services: Contains business logic, services are used by controllers.

  utils: Stores utility functions that can be used across the application.

  validations: Validates data to ensure it matches expected formats or values before processing.

    - app.ts: Main application file that sets up the server, connects middleware, and imports routes.

    - index.ts: Bootstraps the application by importing app.ts and listening on a port.

tests

Create Permission Set

  • This folder helps in organizing test scripts in a way that they are separate from the main codebase. Test files must all be passed during the CI/CD process.

Other key files

  • docker-compose.yml: Uses Dockerfile.dev to set up a containerized backend linked to a PostgreSQL DB.
  • docker-compose.test.yml: Uses Dockerfile.staging to run test files.
  • Dockerfile: Contains the necessary instructions to build a Docker image for the production environment during the CI/CD process.
  • Dockerfile.staging: Builds a Docker image specifically tailored for running test files during the CI/CD process in the staging environment.
  • Dockerfile.dev: Builds a Docker image specifically tailored for running local backend in the development environment.
